FB01D1PL
Lovato Electric

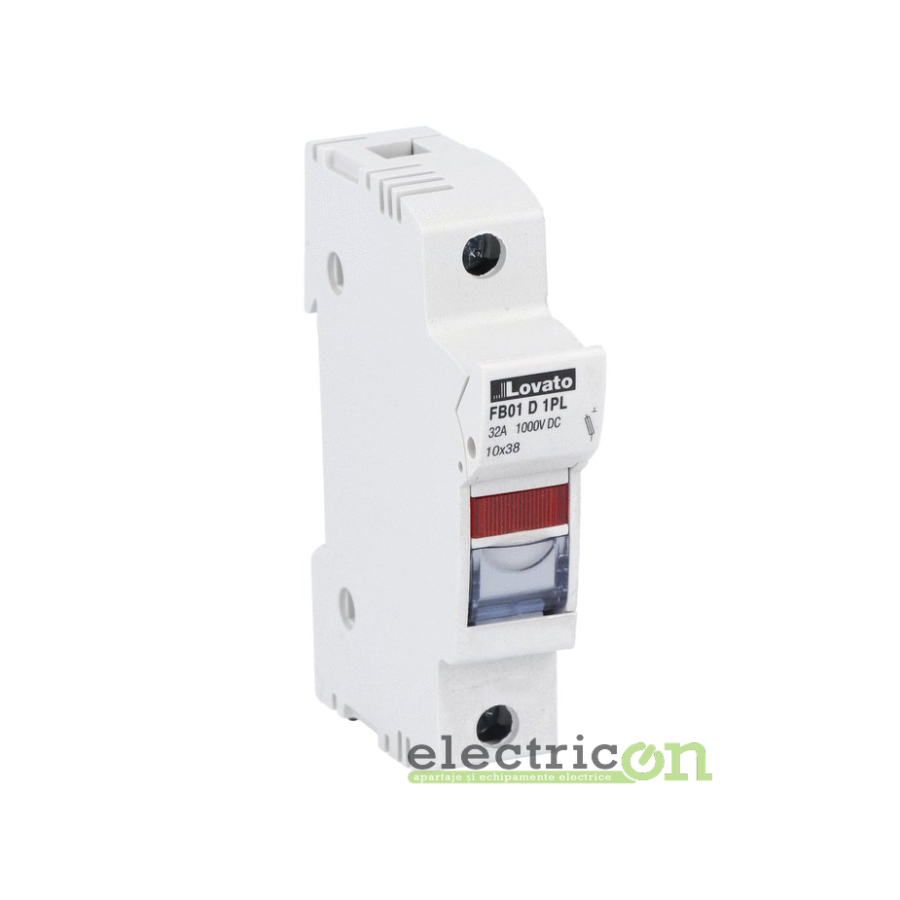

Soclu pentru sigurante fuzibile DC, Fotovoltaice CH10x38

28,44 lei
Include TVA

Soclu pentru sigurante fuzibile Fotovoltaice ;CH10x38 Lovato Electric

8 In stoc

Cod Produs: FB01D1PL

Ai nevoie de ajutor? 0773393640 - suport tehnic / 0772245110 - suport comenzi

Cere informatii
laptop Gama variata
de produse map-icon National
si european delivery Livrare
rapida network Oferte
personalizate info Info
utile handshake Partener
de incredere


Suport sigurante certificat UL pentru aplicatii fotovoltaice, pentru sigurante 10X38mm. 32A curent nominal la 1000VDC, 1P. Cu indicator de stare. 1 modul

Product designation Fuse holder
Product type designation FB
Number of DIN modules 1
Operating voltage type DC
Electrical features
IEC maximum rated current (In) A 32
IEC maximum rated voltage (Un) V 1000
IEC Utilization category DC20B 1000VDC
Derating factor of rated current In for different ambient temperature
20°C 1
30°C 0.95
40°C 0.9
50°C 0.8
60°C 0.7
70°C 0.5
Derating factor of rated current In for side by side fuse holders (poles)
1-4 1
5-6 0.8
7-9 0.7
≥10 0.6
Rated current (In) A 32
Ambient conditions
Operating temperature
min °C -20
max °C +70
Storage temperature
min °C -40
max °C +80
Max altitude m 3000
Mechanical features
Operating position
normal Vertical plan
allowable Any
Fixing 35mm DIN rail
Tightening torque for terminals
max Nm 2.5
max Ibin 22
Conductor section
Flexible max (IEC) mm² 16
- Flexible max (AWG/kcmil) 8
Rigid max (IEC) mm² 16
- Rigid max (AWG/kcmil) 8
Weight g 65
Resistance & Protection
Frontal IP degree IP20
ETIM classification
ETIM 8.0 EC002705 - Holder for cylindrical fuse
Brosuri
Document Icon Product and solutions for photovoltaic applications
PD075 iunie 2021

Link Producator

https://www.lovatoelectric.ro/FB01D1PL/FB01D1PL/snp


Dimensiuni

Schema de conectare

Numar de poli
1P
FB01D1PL
8 Produse
8013975186671
