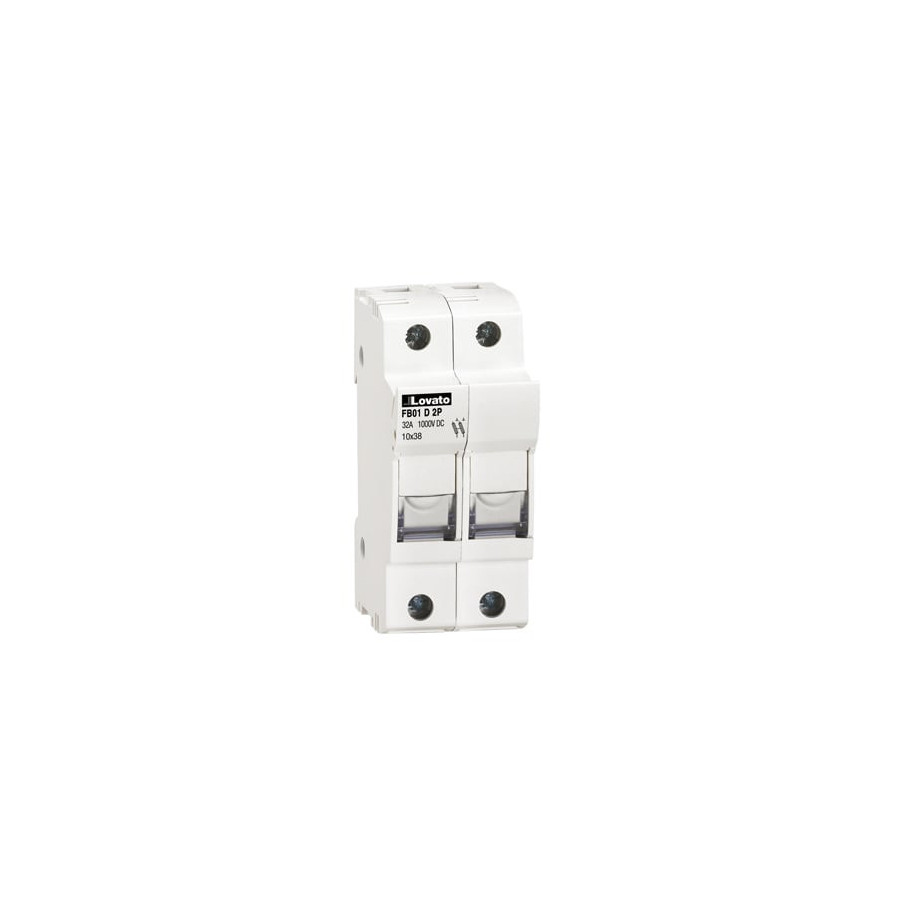

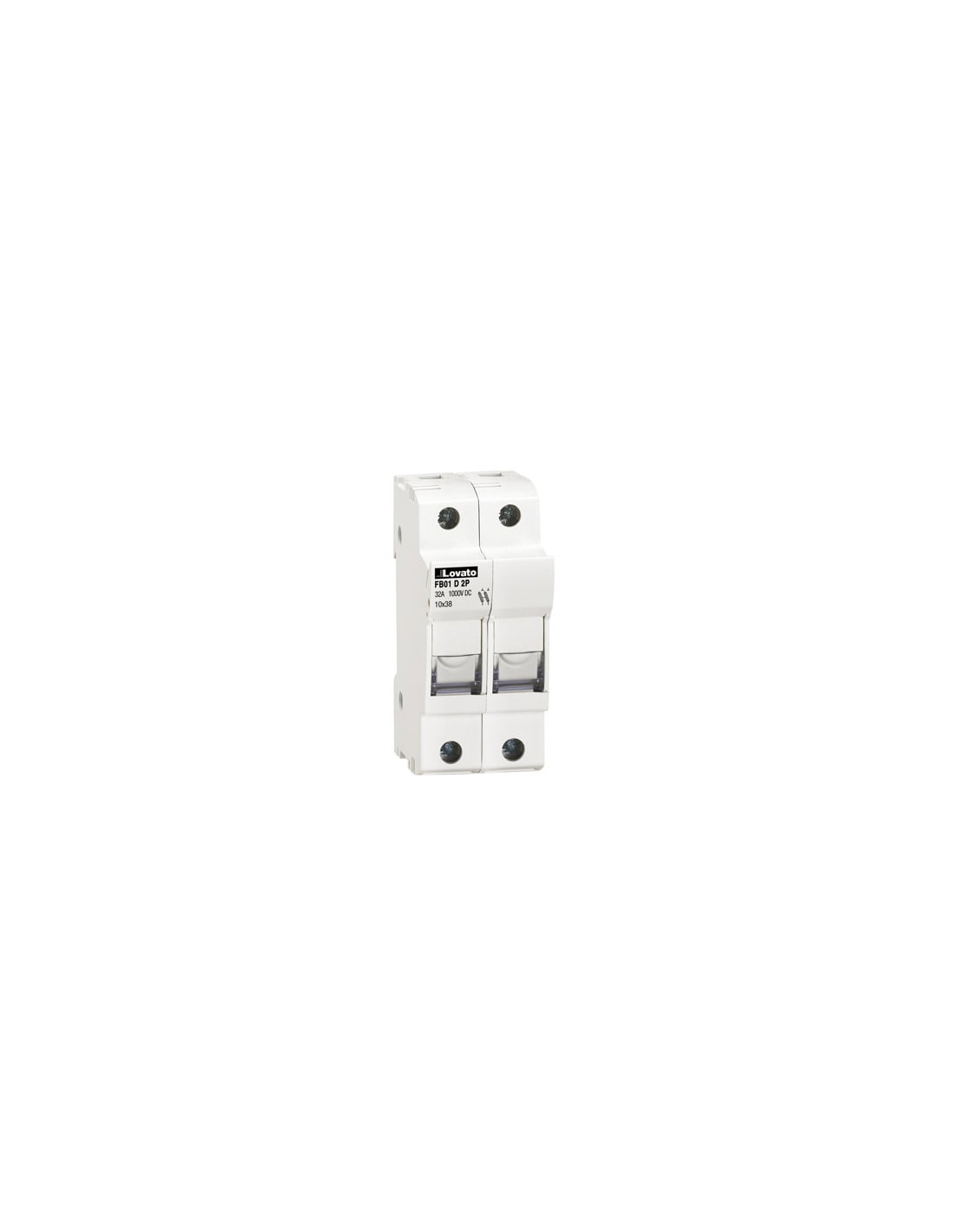

FB01D2P
Cod Produs: FB01D2P
Ai nevoie de ajutor? 0773393640 - suport tehnic / 0772245110 - suport comenzi
| Cod de comanda | FB01D2P |
| Greutate [g] | 127 |
| Cantitate in ambalaj | 6 |
| Cantitate multipla de ambalaje per comanda | 6 |
| Dimensiune ambalaj | 227X085X065 |
| Volume [cm³] | 209.029 |
| Cod de bare [EAN13] | 8013975186527 |
| Cod HS | 85389099 |
| Product designation | Fuse holder | |||
| Product type designation | FB | |||
| Number of DIN modules | 2 | |||
| Operating voltage type | DC | |||
| Electrical features | ||||
| IEC maximum rated current (In) | A | 32 | ||
| IEC maximum rated voltage (Un) | V | 1000 | ||
| IEC Utilization category | DC20B 1000VDC | |||
| Derating factor of rated current In for different ambient temperature | ||||
| 20°C | 1 | |||
| 30°C | 0.95 | |||
| 40°C | 0.9 | |||
| 50°C | 0.8 | |||
| 60°C | 0.7 | |||
| 70°C | 0.5 | |||
| Derating factor of rated current In for side by side fuse holders (poles) | ||||
| 1-4 | 1 | |||
| 5-6 | 0.8 | |||
| 7-9 | 0.7 | |||
| ≥10 | 0.6 | |||
| Rated current (In) | A | 32 | ||
| Ambient conditions | ||||
| Operating temperature | ||||
| min | °C | -20 | ||
| max | °C | +70 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | +80 | ||
| Max altitude | m | 3000 | ||
| Mechanical features | ||||
| Operating position | ||||
| normal | Vertical plan | |||
| allowable | Any | |||
| Fixing | 35mm DIN rail | |||
| Tightening torque for terminals | ||||
| max | Nm | 2.5 | ||
| max | lbin | 22 | ||
| Conductor section | ||||
| Flexible max (IEC) | mm² | 16 | ||
| - Flexible max (AWG/kcmil) | 8 | |||
| Rigid max (IEC) | mm² | 16 | ||
| - Rigid max (AWG/kcmil) | 8 | |||
| Weight | g | 127 | ||
